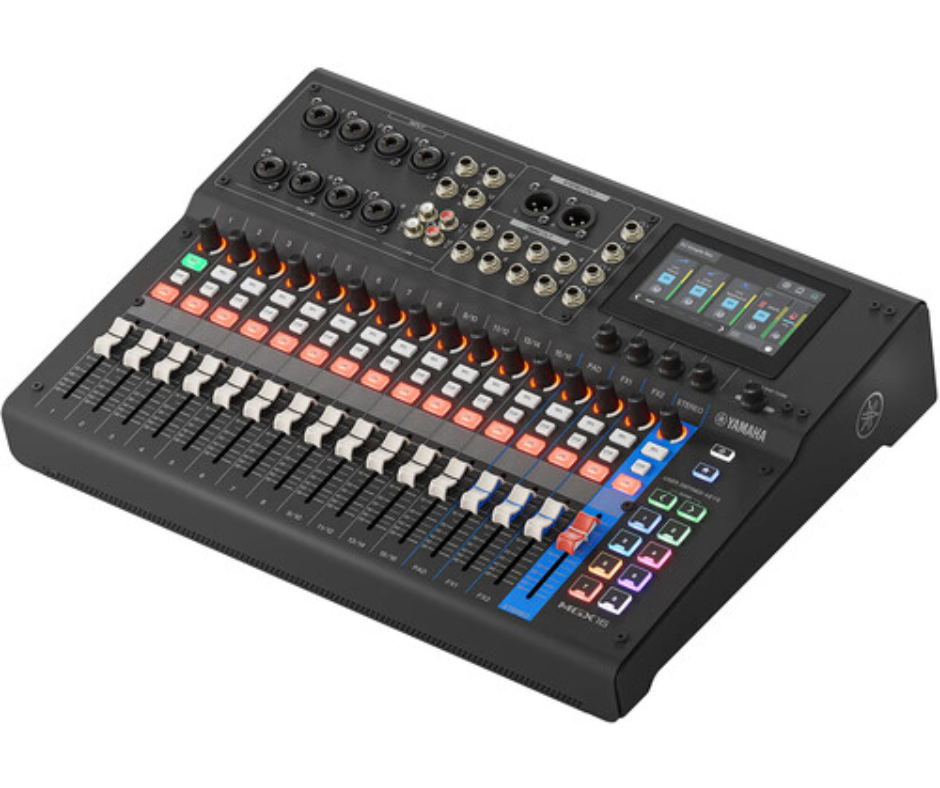

Yamaha MGX16 B | 22-Channel Digital Mixer with Touchscreen, Bluetooth & Dual USB Interface – Black

Yamaha MGX16 B  (Yamaha MGX16-B)

Yamaha MGX16 B – 22-Channel Digital Mixer with Bluetooth, USB & Touchscreen

The Yamaha MGX16 B is a premium 22-channel digital mixer engineered to deliver pro-level performance in today’s hybrid audio environments. Whether you're mixing a live performance, podcast, livestream, or studio session, the MGX16 B provides the tools and flexibility to keep your sound clean, dynamic, and fully under control.

Feature-Rich and Ready for Anything

Designed for intuitive operation, the MGX16 B combines touchscreen control with 16 motorized faders, comprehensive I/O, advanced DSP, and powerful integration features like dual USB interfaces and Bluetooth audio input. Its refined build and versatile workflow make it the perfect fit for venues, content creators, houses of worship, and mobile setups.

Key Features:

• 22-channel digital mixing console (16 analog + 6 stereo)
• 8x Combo XLR-1/4" TRS Mic/Line Inputs
• 4x 1/4" TRS + 2x RCA Line Inputs
• Dual USB-C ports:
  • USB MAIN: 22-track record / 18-track playback
  • USB SUB: 2-track record/playback & control
• Bluetooth 5.0 audio input (built-in)
• microSD card recording: 16-track record / 2-track playback
• Studio-grade mic preamps with 86 dB gain range
• Smart Gain, Clip Safe, Scene Recall, and Assistive Modes
• Gate, Compressor, Morph EQ, Ducker, Amp Simulators, Voice Changer, and more
• 4.3” LCD touchscreen + 16x 60mm motorized faders + Touch & Turn knob
• 8 sound pads and 4 customizable knobs (user-defined functions)
• Includes Steinberg Cubase AI, WaveLab Cast LE, MixKey, and more

Professional Workflow & Sound

The MGX16 B is more than a digital mixer—it's a production powerhouse. Use customizable sound pads and advanced FX to shape your audio with creativity and precision. With scene memory, real-time metering, and flexible routing, the MGX16 gives engineers, performers, and creators everything they need to stay focused and deliver their best.

Perfect for:

• Live sound in venues, cafés, or churches
• Podcasting and live streaming
• Music recording and mixing
• Hybrid events with mobile or desktop setups

MGX16 B Specifications

• I/O Capacity: 16 inputs / 14 outputs
• Mic Preamps: 8x Combo XLR-1/4”
• Outputs: 2x XLR, 8x 1/4” bus, 4x 1/4” headphone
• USB: Dual USB-C ports (MAIN & SUB)
• Bluetooth: Yes (5.0, built-in)
• Multitrack Recording: 18 tracks via USB / 16 tracks via SD card
• Effects: 11 types + Ducker, Delay, Reverb, Compressor, Amp Sim
• Dynamic Range: 125 dB (out), 115 dB (input to output)
• Frequency Response: 20 Hz – 20 kHz (+1/-2 dB)
• Touchscreen: 4.3" LCD with full GUI
• Weight: 10.4 lb / 4.7 kg
• Dimensions: 16.5 x 3.8 x 12.5 in

What's in the Box:

• Yamaha MGX16 B Digital Mixer (Black)
• Power Adapter
• Steinberg Software License Card
