Yamaha MS101-4 | 4" - 115dB | 30W Active Full-Range Monitor

Yamaha MS101-4  (Yamaha MS1014)

Compact Powered Studio Monitor

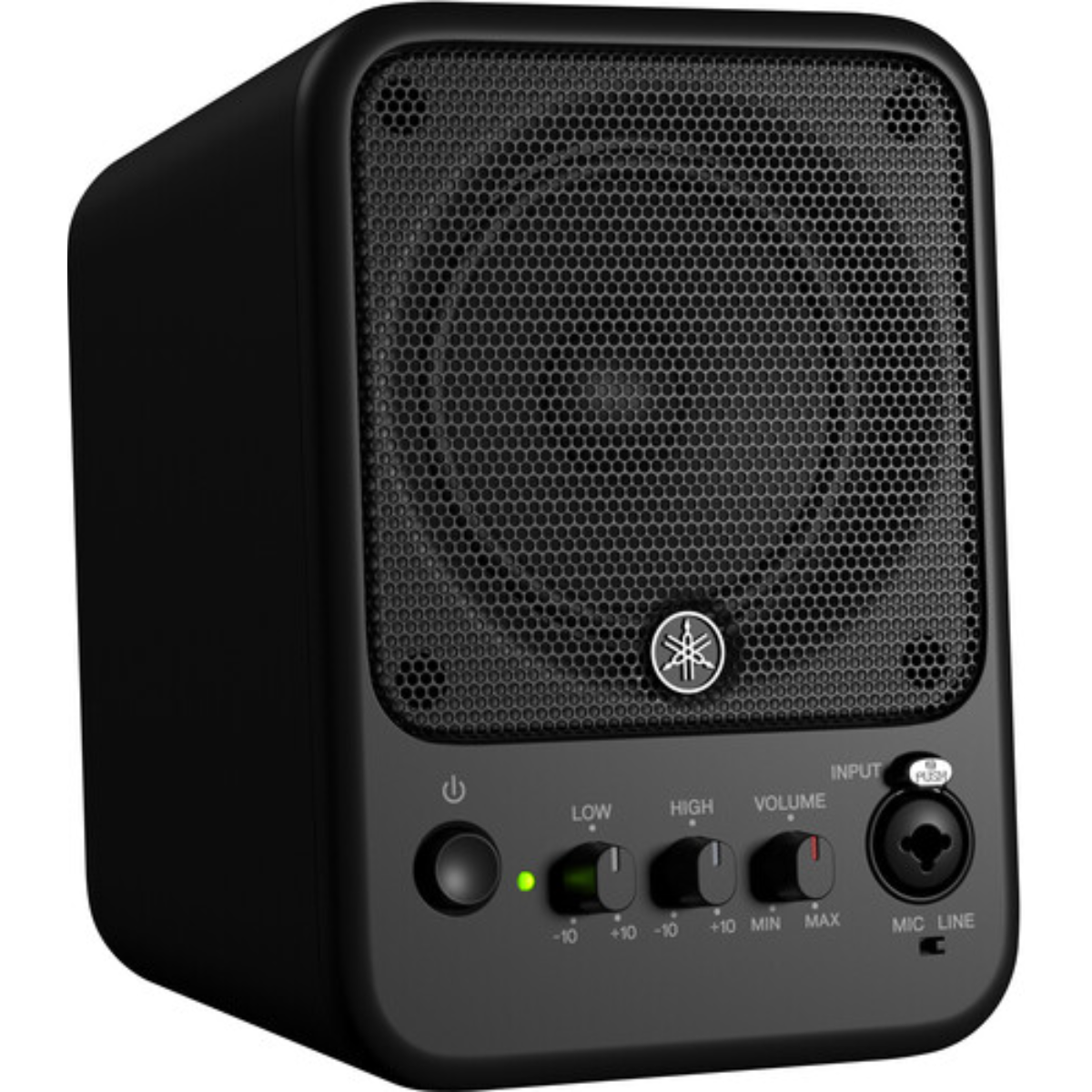

Yamaha MS101-4 is an active full-range monitor built for professional mobile, project, and home studio applications. Equipped with a 4" cone driver and a 30W RMS Class-D amplifier, it provides clean, accurate monitoring in a compact, low-profile cabinet.

Its straightforward controls and flexible connectivity make it ideal for musicians, educators, content creators, and engineers who need reliable reference sound in tight spaces.

Yamaha MS101-4 Competitive Differences

• 4" full-range driver with 115 dB maximum SPL
• Combo XLR-1/4" mic/line input plus dedicated 3.5mm and 1/4" line inputs

Yamaha MS101-4 Description

The Yamaha MS101-4 features a 4" (10.1 cm) full-range cone driver with a 1" (25.4 mm) voice coil housed in a bass-reflex, ported enclosure for enhanced low-frequency response down to 77 Hz. The redesigned cabinet maintains a compact footprint while delivering balanced sound suitable for nearfield monitoring and speech applications.

Powered by a 30W RMS Class-D amplifier, the MS101-4 produces up to 115 dB SPL, offering clean output for studio reference, keyboard monitoring, small presentation systems, and classroom use. The sturdy metal grille helps protect the driver during transport and mobile operation.

The front panel includes a combo XLR-1/4" TRS balanced/unbalanced mic/line input, along with volume, HF shelf, and LF shelf EQ controls for quick tonal adjustments. Rear-panel connections include a 3.5mm TRS unbalanced line input, a 1/4" TRS balanced/unbalanced line input, and a 1/4" TRS balanced/unbalanced line output for linking to another monitor or compatible device.

Operating on 100–240V AC, the MS101-4 is ready for worldwide use. The enclosure supports vertical orientation and includes two M5 mounting points on the bottom panel for flexible installation options.

MS101-4 Features

• Active full-range monitor speaker
• 1x 4" (10.1 cm) cone driver
• 1" (25.4 mm) voice coil
• 30W RMS Class-D amplifier
• Frequency range: 77 Hz – 20 kHz
• Maximum SPL: 115 dB
• Combo XLR-1/4" TRS balanced/unbalanced mic/line input (5.4 kOhms)
• 3.5mm TRS unbalanced line input (10 kOhms)
• 1/4" TRS balanced/unbalanced line input (10 kOhms)
• 1/4" TRS balanced/unbalanced line output
• HF and LF shelf EQ controls
• Bass-reflex/ported, shielded enclosure
• Vertical orientation
• Universal 100–240V AC power supply

MS101-4 Specifications

• Monitor Type: Active Full-Range
• Total Power Output: 30W RMS
• Amplifier: Class-D
• Driver: 1x 4" (10.1 cm) cone
• Voice Coil: 1" (25.4 mm)
• Frequency Range: 77 Hz – 20 kHz
• Maximum SPL: 115 dB
• Analog Input Sensitivity: -10 dBu
• AC Input Power: 100–240 VAC, 50/60 Hz
• Power Consumption: 3W (Idle), 10W (Typical)
• Dimensions (W x H x D): 5.6 x 7.7 x 7.4" (14.2 x 19.6 x 18.7 cm)
• Weight: 4.6 lb (2.1 kg)
• UPC: 889025138727

What's In The Box

• Yamaha MS101-4 monitor speaker
• Power cord
