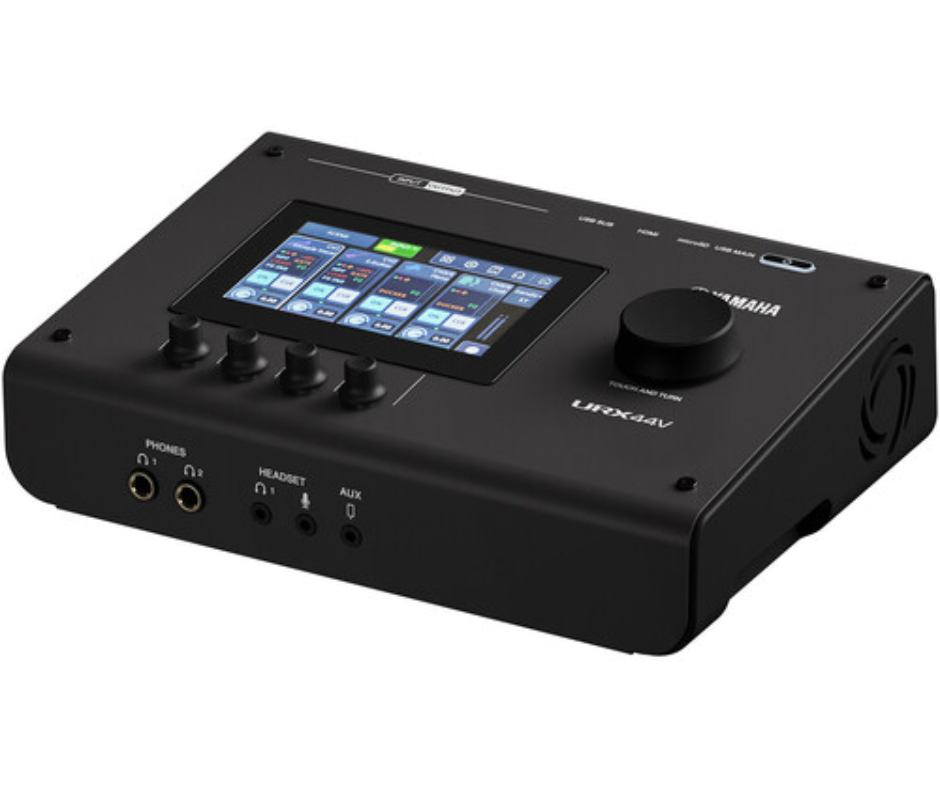

Yamaha URX44V B | 32-Bit Audio/Video Interface with HDMI I/O | 4 Mic Inputs + microSD Multitrack Recording

Yamaha URX44V B  (Yamaha URX44V-B)

Audio/Video USB Interface

Yamaha URX44V B is a high-performance 6-in/4-out USB-C interface that blends professional audio and video workflows. It supports 32-bit / 192 kHz audio resolution, onboard DSP, touchscreen control, and full HDMI In/Out for integrated video capture and passthrough—making it ideal for streamers, content creators, and live production setups.

Yamaha URX44V B Competitive Differences

• HDMI input and output for 4K/60 or 1080p/240 video passthrough and capture
• microSD slot for up to 16-track standalone audio recording

Yamaha URX44V B Description

The Yamaha URX44V B delivers unmatched flexibility by combining multitrack audio recording with HDMI video I/O. Whether you’re live streaming, podcasting, capturing performances, or working on mobile productions, the URX44V allows you to manage both audio and video signals from a single compact unit.

With four XLR-1/4" combo inputs offering 78 dB of gain, dual headphone outputs, and a wide selection of 3.5mm and TRS I/O, it’s equipped to handle mics, instruments, and headsets with ease. The onboard DSP includes effects like EQ, reverb, compressor, amp simulation, and Pitch Fix (voice changer), all accessible via a 4.3" color touchscreen and customizable control knobs.

HDMI input and output ports allow passthrough and capture of up to 4K/60 or 1080p/240 video, making it a powerful tool for multimedia production. With dual USB-C ports, you can use one for 18-track recording/playback and the other for 2-channel I/O—perfect for hybrid recording and streaming environments.

The URX44V also features a microSD slot for 16-track standalone recording, bypassing the need for a computer in mobile or backup scenarios. Assistive tools like Auto Gain, Clip Safe, Ducker, Scene Recall, and lip-sync delay correction help keep your production smooth, polished, and professional.

Model Features

• 6x4 USB-C audio/video interface with HDMI input and output
• 4 combo mic/line/Hi-Z inputs with 78 dB gain range
• Touchscreen GUI with 4 customizable knobs and Touch & Turn control
• Onboard DSP: EQ, compressor, reverb, amp sim, Pitch Fix
• Dual USB-C ports: Main (18-track) and Sub (2-track)
• microSD card slot for 16-track standalone recording
• Video support: HDMI In/Thru up to 4K/60 or 1080p/240
• Includes Steinberg software suite and MixKey software mixer

Model Specifications

• Audio Resolution: 32-bit / 192 kHz
• Inputs: 4x XLR-1/4" combo, 1x 3.5mm mic/line/headset, 1x 3.5mm mic/line, 1x 3.5mm aux
• Outputs: 2x 1/4" TRS main, 2x 1/4" TRS line, 2x 1/4" headphone
• HDMI I/O: 1x HDMI input, 1x HDMI output (video passthrough and capture)
• Touchscreen: 4.3" color LCD
• Gain Range: 78 dB
• Dynamic Range: 115 dB (inputs), 125 dB (line outputs)
• THD: 0.0008% (inputs), 0.00036% (outputs)
• microSD Recording: 16-track record / 2-track playback
• Power: 100–240V AC adapter (included)
• Power Consumption: 38.4W typical
• Dimensions: 9.6 x 7.2 x 3.1 in (24.4 x 18.3 x 7.9 cm)
• Weight: 4.4 lb (2.0 kg)
• UPC: Not confirmed

What's In The Box

• Yamaha URX44V B Interface
• USB-C Cable
• AC Power Adapter
• Software Download Information
